A2 1.2363 SKD12 Cold Work Tool Steel

A2 Cold Work Tool Steel offers excellent wear resistance, toughness, and dimensional stability. With good hardenability and machinability, it is ideal for blanking dies, punches, and forming tools.

Standard:AISI A2, DIN 1.2363(X100CrMoV5), JIS SKD12, GB Cr5Mo1V, Cr6WV
Technique: EAF + LF + VD or ESR, forged, multi-directional forging ratio ≥4, spheroidized annealed

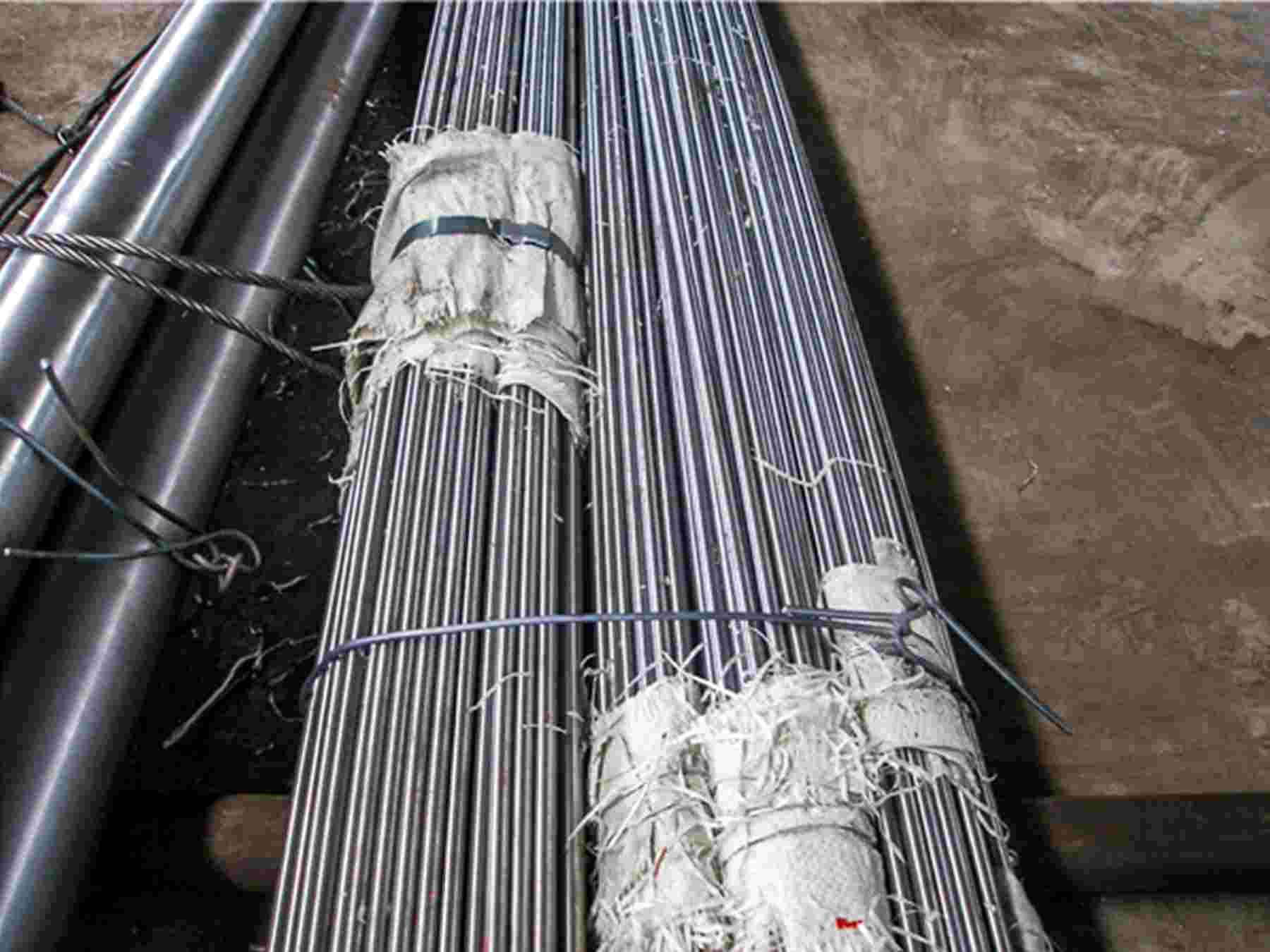

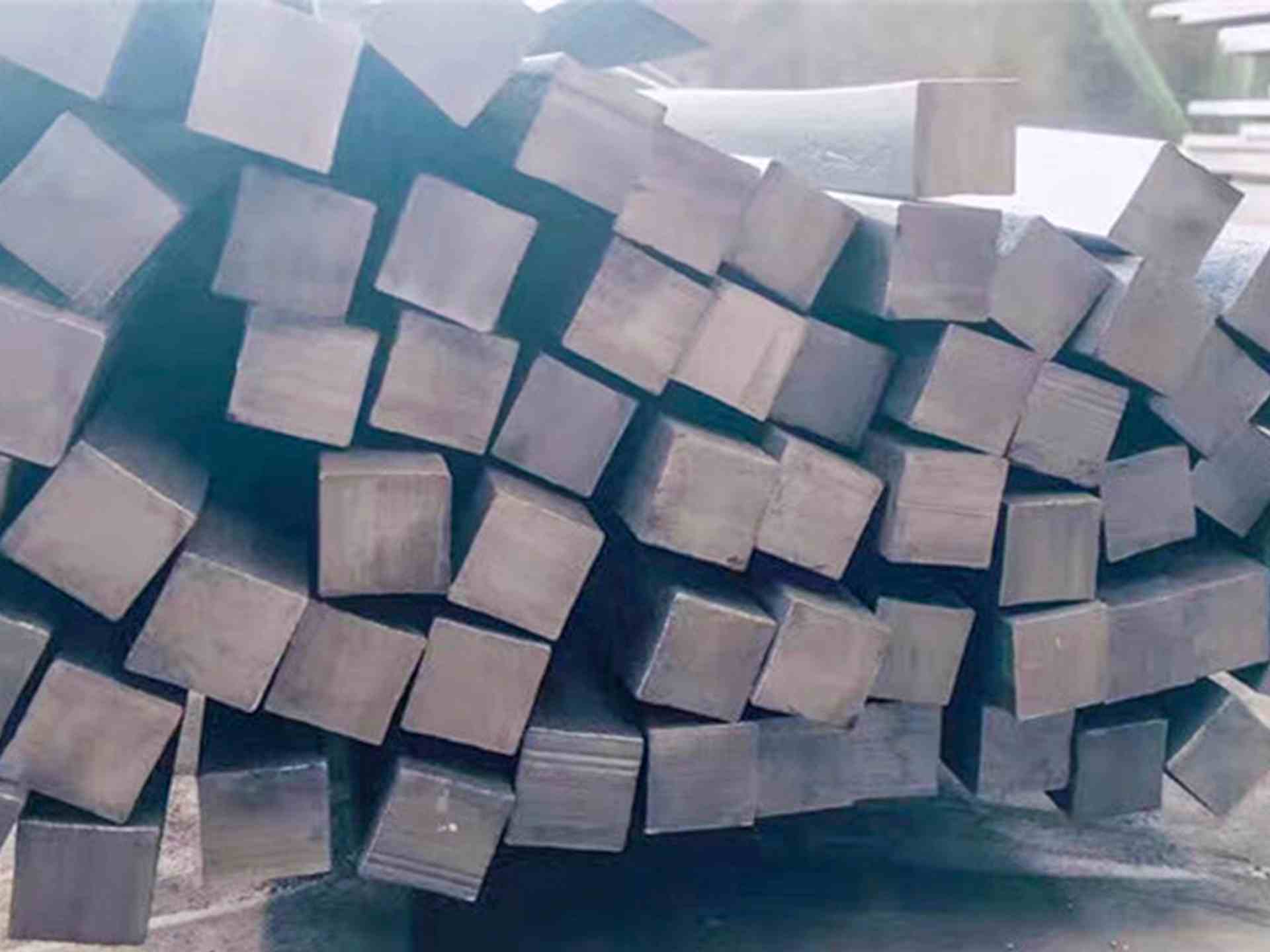

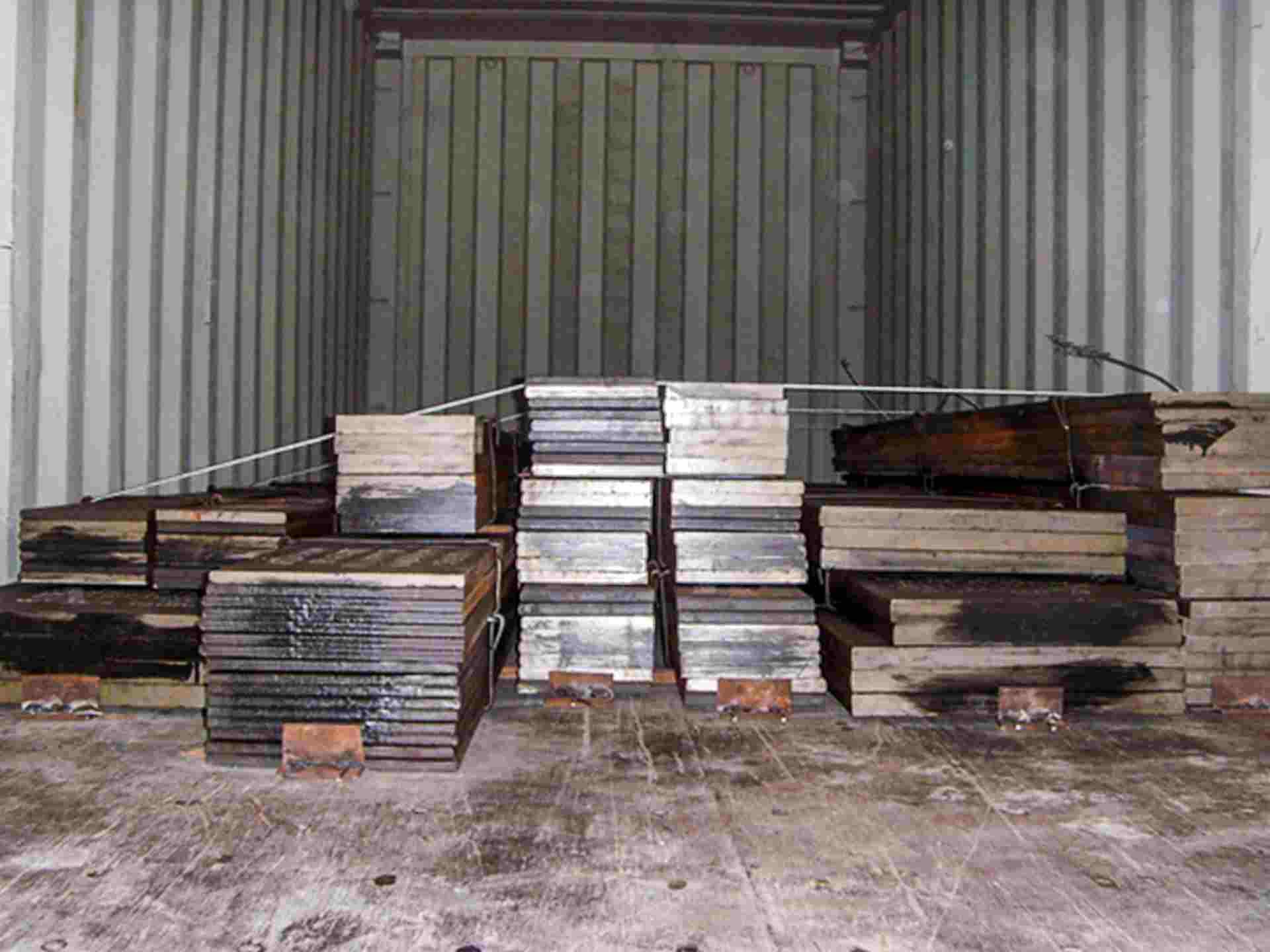

Shape: Round, Flat, Plates, Blocks
Heat treatment: Supplied in annealed condition, hardness ≤255 HBW; pre-hardened to 58–62 HRC (quenched and tempered) available on request
Surface Treatment: Black (hot-rolled / forged surface), turned, milled / ground, sawn ends
Tolerance: flat bars & plates thickness: +0.5/-0.0 mm (turned); forged blocks: ±0.2 mm
MOQ: 1 Ton

We supply AISI A2 in various custom sizes

Chemical Composition (%)

Grade	C	Si	Mn	P (≤)	S (≤)	Cr	Mo	V	W	(Other Elements, ≤)
1.2363 (X100CrMoV5)	0.95–1.05	0.10–0.40	0.40–0.80	0.030	0.030	4.80–5.50	0.90–1.20	0.15–0.35	—	Ni 0.30, Cu 0.25
A2	0.95–1.05	0.10–0.50	0.40–1.00	0.030	0.030	4.75–5.50	0.90–1.40	0.15–0.50	—	Ni 0.30, Cu 0.25
SKD12	0.95–1.05	0.10–0.40	0.60–0.90	0.030	0.030	4.80–5.50	0.90–1.20	0.15–0.35	—	Ni 0.25, Cu 0.25
Cr5Mo1V	0.95–1.05	≤0.40	≤0.80	0.030	0.030	4.75–5.50	0.90–1.40	0.15–0.50	—	Ni 0.25, Cu 0.25
Cr6WV (similar)	1.00–1.15	≤0.40	≤0.40	0.030	0.030	5.50–7.00	0.50–0.80	0.50–0.70	1.10–1.50	—

Main characteristics of A2 tool steel

A2 | 1.2363 | SKD12 tool steel applications

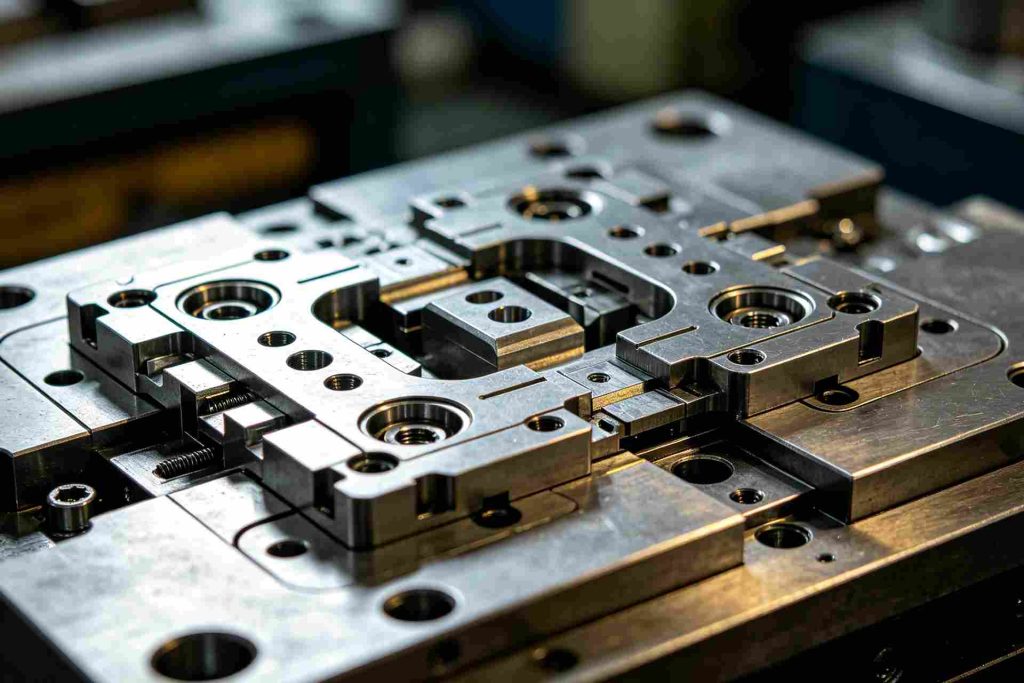

A2 steel for Precision Blanking Die

High carbon and chromium deliver exceptional wear resistance, keeping cutting edges sharp and precise in long-run blanking of thin to medium-gauge sheet metal.

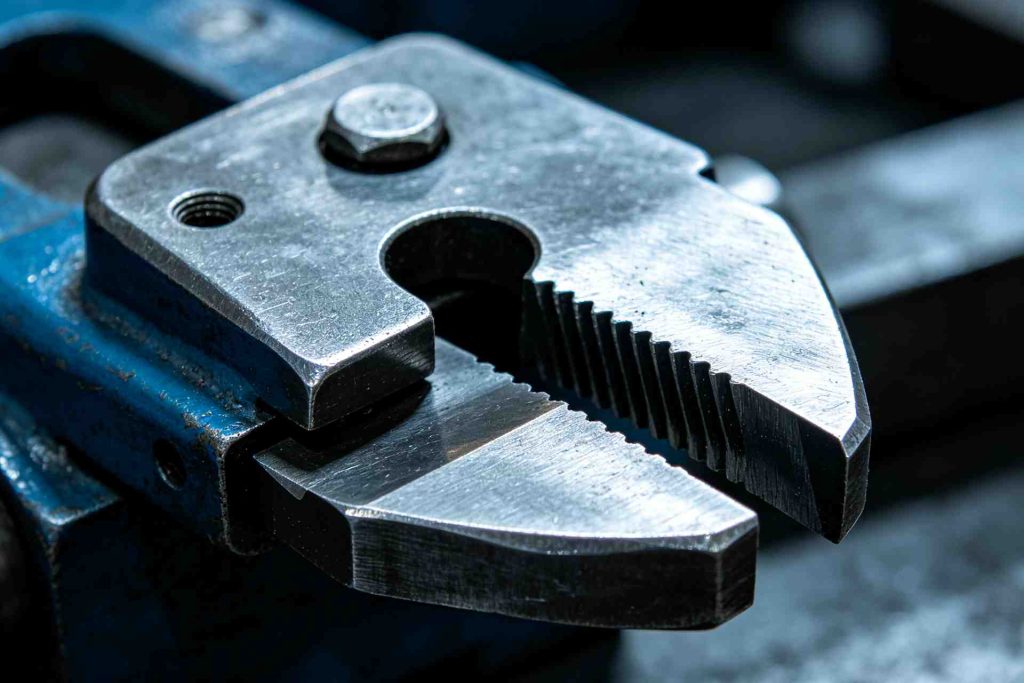

A2 steel for Cold Shear Blade

Excellent edge stability and anti-chipping properties ensure clean, burr-free cuts and extended blade life in cold shearing of bars and profiles.

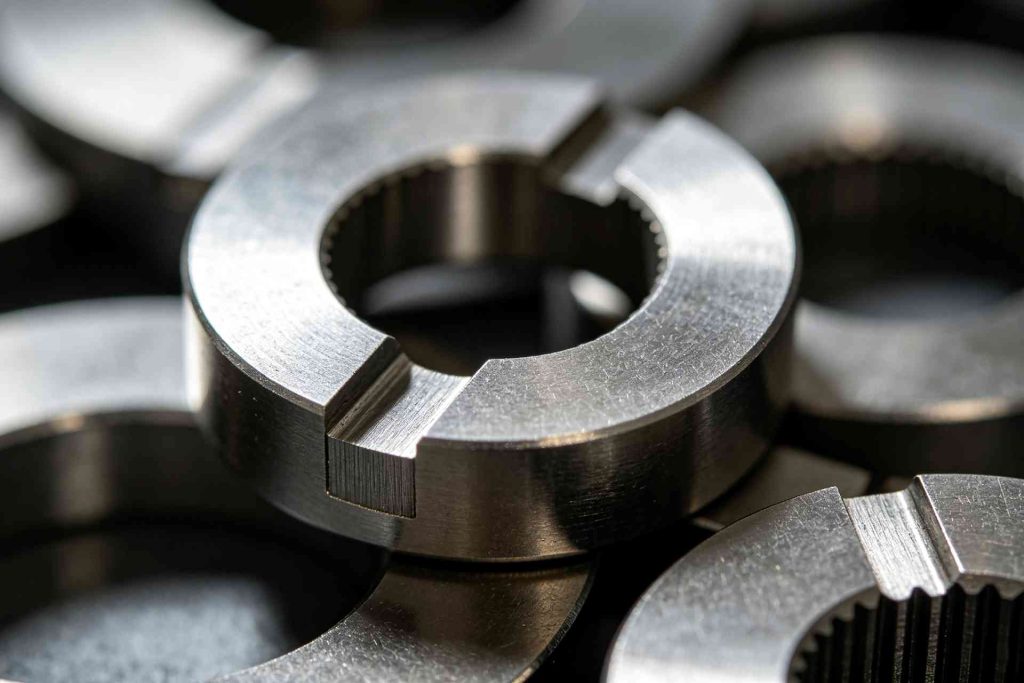

A2 steel for Precision Gauge & Measuring Tool

Minimal distortion in heat treatment and high attainable hardness provide lasting dimensional stability for gauges, master tools, and precision measuring instruments.

Our Production Technology For 1.2363 (X100CrMoV5 / A2 / SKD12) Cold Work Tool Steel

Ultrasonic testing (UT) 100% as per SEP 1921, ASTM A388, or EN 10228-3 (upon request)
Micro Cleanliness as per ASTM E45 or DIN 50602
Spheroidized microstructure as per relevant tool steel standards
Macrostructure, microstructure, grain size, and mechanical properties shall meet the standards specified in GB/T 1299 for Tool and Die Steels
Delivery condition: Soft annealed, hardness max. 240 HB (≤ 255 HB per some sources)

mechanical properties & heat treatment of A2 steel

Heat temperature	Start forging temperature	Finish forging temperature	Cooling method
1050 – 1100 °C	1050 – 1100 °C	≥ 900 °C	Pit, sand, or furnace cooling

Annealing

Heat slowly and uniformly to 800 – 840°C (or 820–850°C per some sources)
Hold at temperature for 4 – 5 hours (time depends on section thickness and workpiece size)
Cool slowly in the furnace at a controlled rate of 10 – 20°C/h down to approximately 650°C (or ≤ 30°C/h to 500°C)
Then air cool to room temperature
Hardness after annealing: max. 230 – 255 HB (≈ 22–24 HRC)
Annealing in a protective atmosphere is recommended to reduce decarburization and surface scaling

Hardening

1.2363 (X100CrMoV5 / A2) is an air-hardening cold work tool steel. The steel contains chromium and molybdenum with a relatively high carbon content (~1%) and is capable of deep hardening from air quench, which minimizes distortion compared to oil-hardening grades. This makes it the preferred choice for complex tools, precision dies, and components where dimensional stability is critical. Temper immediately after quenching
Pre-heating (recommended): Pre-heat slowly to 790 – 820°C and soak thoroughly before raising to the austenitizing temperature.
Alternative two-stage pre-heat: 600 – 700°C, then equalize before proceeding to austenitizing temperature
Austenitizing temperature: 930 – 980°C (range spans 940–1020°C depending on application).
Lower range (930–950°C): For applications requiring minimum distortion and good toughness.
Optimal range (950–970°C): For generalpurpose tooling requiring a balance of hardness and toughness.
Upper range (980–1020°C): For applications requiring maximum wear resistance and secondary hardening capability
Holding time: After temperature equalization, hold for 30 – 45 minutes (approximately 30 minutes per 25mm of section thickness)
Quenching media:
Air (still air or pressurized gas quench) — the preferred method for most sections, especially complex shapes, due to superior distortion control.
Oil — for larger sections or when maximum hardness is required (hardness comparable to air quenching).
Warm bath at 500 – 550°C (martempering) — for the most distortionsensitive components
Hardness after quenching: 62 – 65 HRC (approx. 63–64 HRC typical).

Stress relieving

Perform after rough machining or heavy stock removal, especially for tools with complex shapes or unbalanced crosssections, to reduce the risk of distortion during final heat treatment
Heat carefully to 650 – 700°C (650–675°C per some sources, 670–700°C per others)
Hold at temperature for 1 – 2 hours (minimum 2 hours per 25mm of section thickness)
Cool slowly in the furnace to approximately 500°C, then air cool (or air cool directly from holding temperature)
This operation is performed to reduce distortion during final hardening

Tempering

Temper immediately after the workpiece cools to hand-warm temperature (approx. 50–70°C). Delayed tempering may cause cracking
Number of tempers: Minimum 2 times. Double tempering is mandatory for this grade to ensure complete transformation of retained austenite, particularly when tempered above 500°C, and to achieve maximum property stability
Holding time: Soak for at least 1 hour per 25mm of section thickness (minimum 2 hours per cycle). After each cycle, air cool to room temperature before the next tempering
Cooling method: Air cool after each tempering cycle. For applications requiring maximum dimensional stability, rapid cooling following the final tempering cycle is recommended
Tempering temperature ranges:
Low-temperature tempering (150 – 250°C): For maximum hardness (58–64 HRC) with excellent wear resistance — suitable for cutting tools and cold forming dies.
Medium-temperature tempering (300 – 400°C): For improved toughness while maintaining good hardness (55–58 HRC) — suitable for stamping and blanking dies.
High-temperature tempering (500 – 540°C): For secondary hardening applications (57–60 HRC) requiring enhanced thermal stability — particularly suitable when the steel serves as a substrate for PVD coatings or nitriding.
Do not temper in the 250–300°C range where toughness may be reduced
