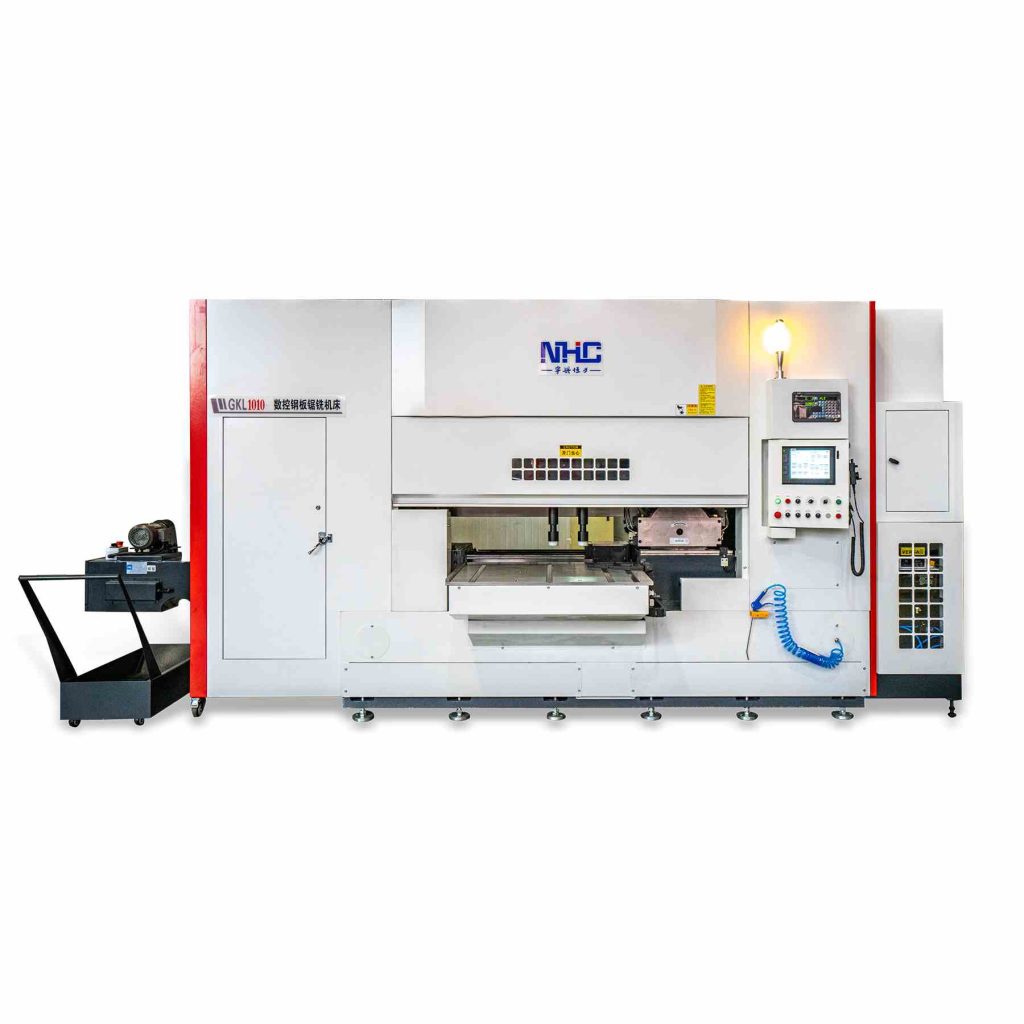

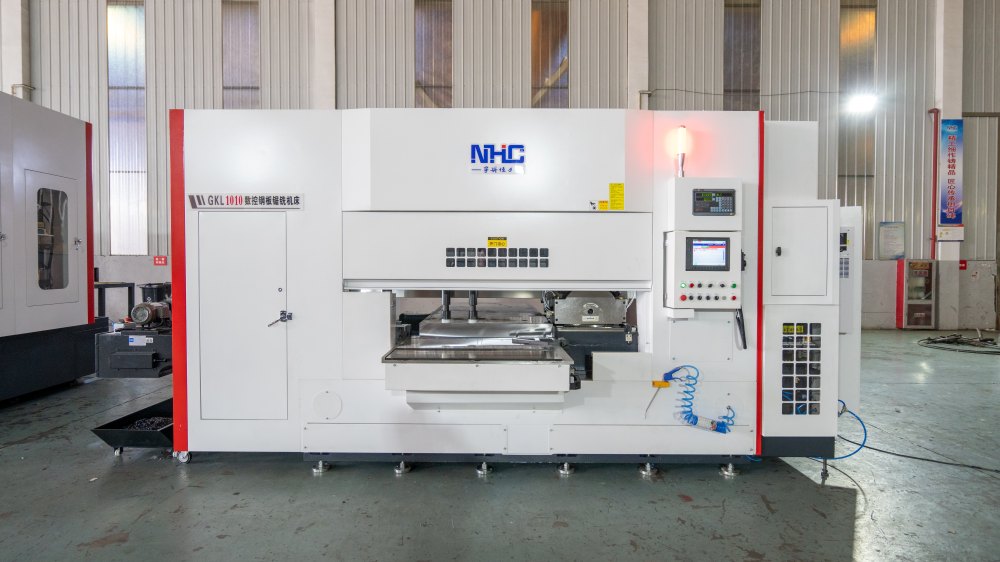

CNC machine Steel Plate Sawing and Milling Machine for GKL1010
Precision Blanking of Small Batches of Mechanical Parts Moulds Circular Saw Milling Machine Cutting Machine Table Saw CNC Router CNC Machine Tools for GKL1010
- The main structural parts are made of high-grade castings,and the machine tool has good rigidity;
- The guide rail adopts a rolling-sliding composite structure, and the machine tool runs smoothly;
- The creative design of the gear box ensures zero clearance of the main shaft output and prolongs the service life of the circular saw blade;
- Both feeding and cut feed are controlled by servo motor and CNC system to ensure the precision of sawing length;
- The workpiece clamping adopts the side clamping mode, and the rotation is flexible and convenient.
GKL1010 Machine Tool Parameter Table
| Blade size(MM) | Sawing range(MM) | Power | Roughness | Perpendicularity(MM) | Parallelism(MM) | Tolerance(MM | Work speed(MM) | Cooling method | Once feed (MM) recyclable | Machine dimension(MM) |
| ø425 | Width：5-1000mm thickness：20-100mm | 15kw | ≤ Ra6.3 | ≤ 0.3mm/100mm | ≤0.18mm/1000mm | ±0.3mm | 100~500mm/min continuously variable speed | Oil mist spray cooling | ≤1000 | 5500*4300*2400 |
Wide application field
Used for small-sized mechanical parts and precision blanking of mold bases.
Customized
According to customer needs, can be tailored.
