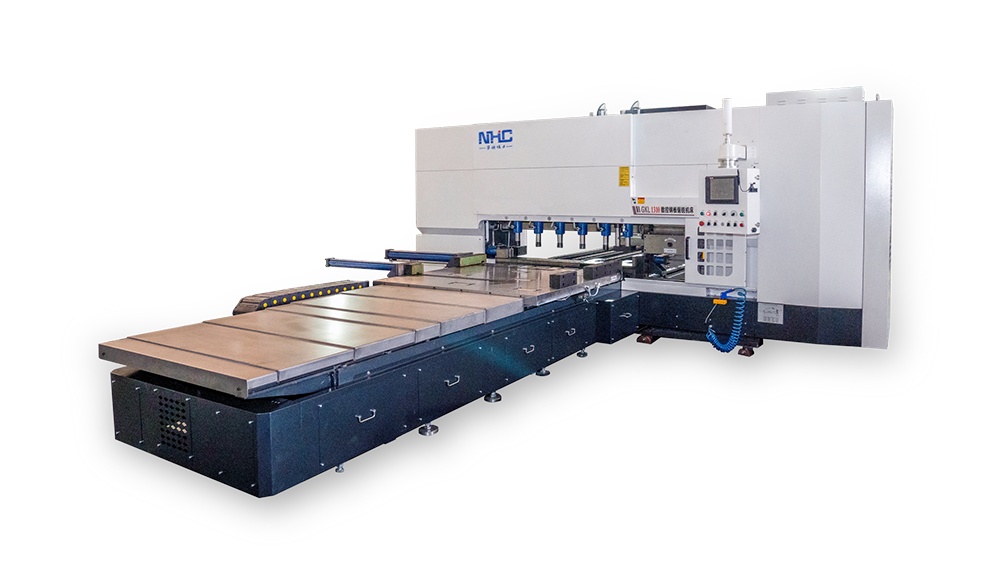

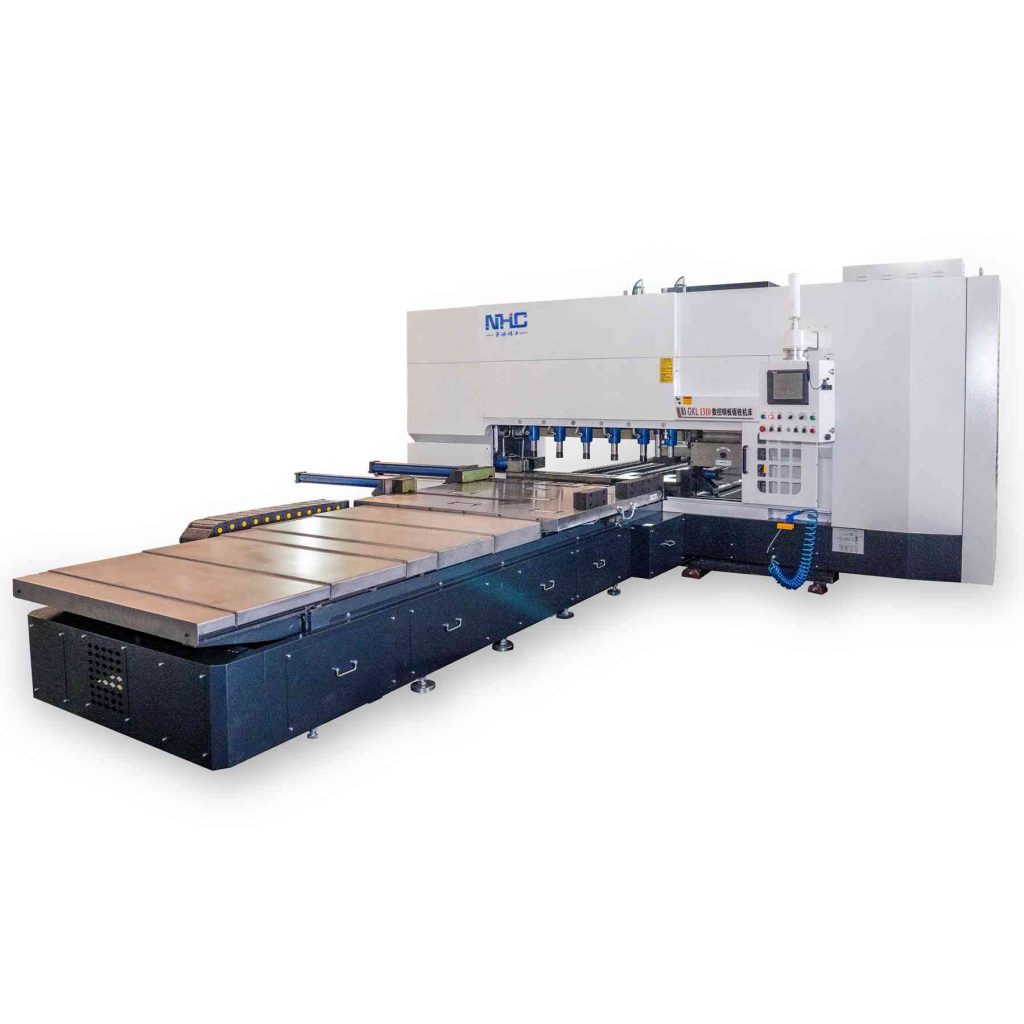

CNC machine Steel Plate Sawing and Milling Machine for GKL1310
Strip Board Specification Material Sawing CNC Machine Tools with Circular Saw Blade Milling Cutting Machine Table Panel Band Saw Router Sawing Machine
- The main structural parts are made of high-grade castings, and the machine tool has good rigidity;
- The guide rail adopts a rolling-sliding composite structure, and the machine tool runs smoothly;
- The creative design of the gear box ensures zero clearance of the main shaft output and prolongs the service life of the circular saw blade:
- Both feeding and cutting feed are controlled by servo motor and CNC system to ensure the precision of sawing length;
- The workpiece clamping adopts upper pressing and side clamping bi-directionally, and the clamping is safe and secure.
GKL1310 Machine Tool Parameter Table
| Blade size(MM) | Sawing range(MM) | Power | Roughness | Perpendicularity(MM) | Parallelism(MM) | Tolerance(MM | Work speed(MM) | Cooling method | Once feed (MM) recyclable | Machine dimension(MM) |
| ø425 | Width：600-1350mm thickness：20-100mm | 15kw | ≤ Ra6.3 | ≤ 0.3mm/100mm | ≤0.3mm/1000mm | ±0.3mm | 100~500mm/min continuously variable speed | Oil mist spray cooling | ≤2000 | 7200*5000*2600 |
Wide application field
In the field of metal processing, the traditional cutting and rough milling are replaced by an efficient and accurate "saw milling" method.
Multi-variety processing
Non-ferrous metals: copper, aluminum and its alloys; Ferrous metal: carbon steel, die steel, stainless steel, alloy structural steel, spring steel, wear-resistant steel, etc.
Customized
According to customer needs, can be tailored.
