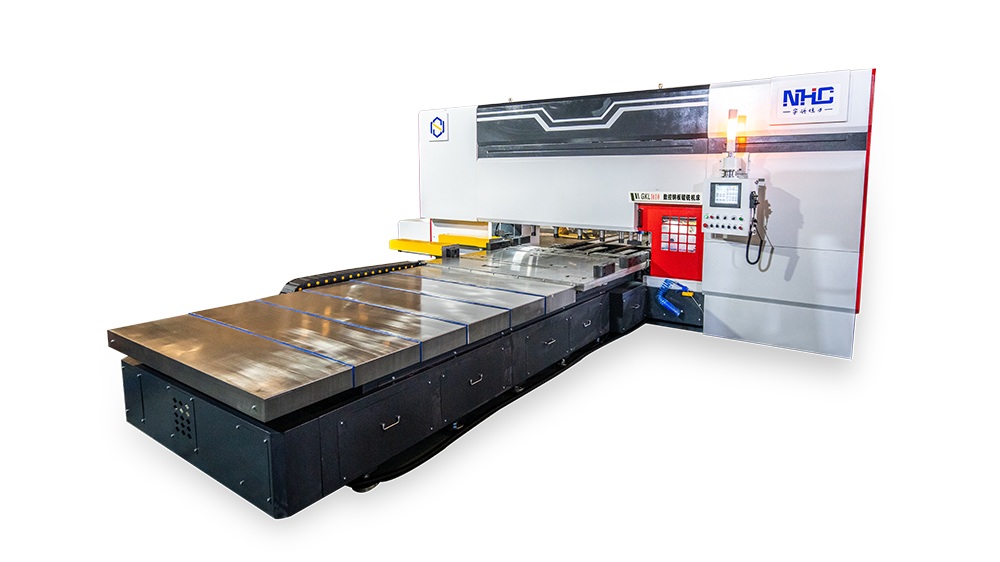

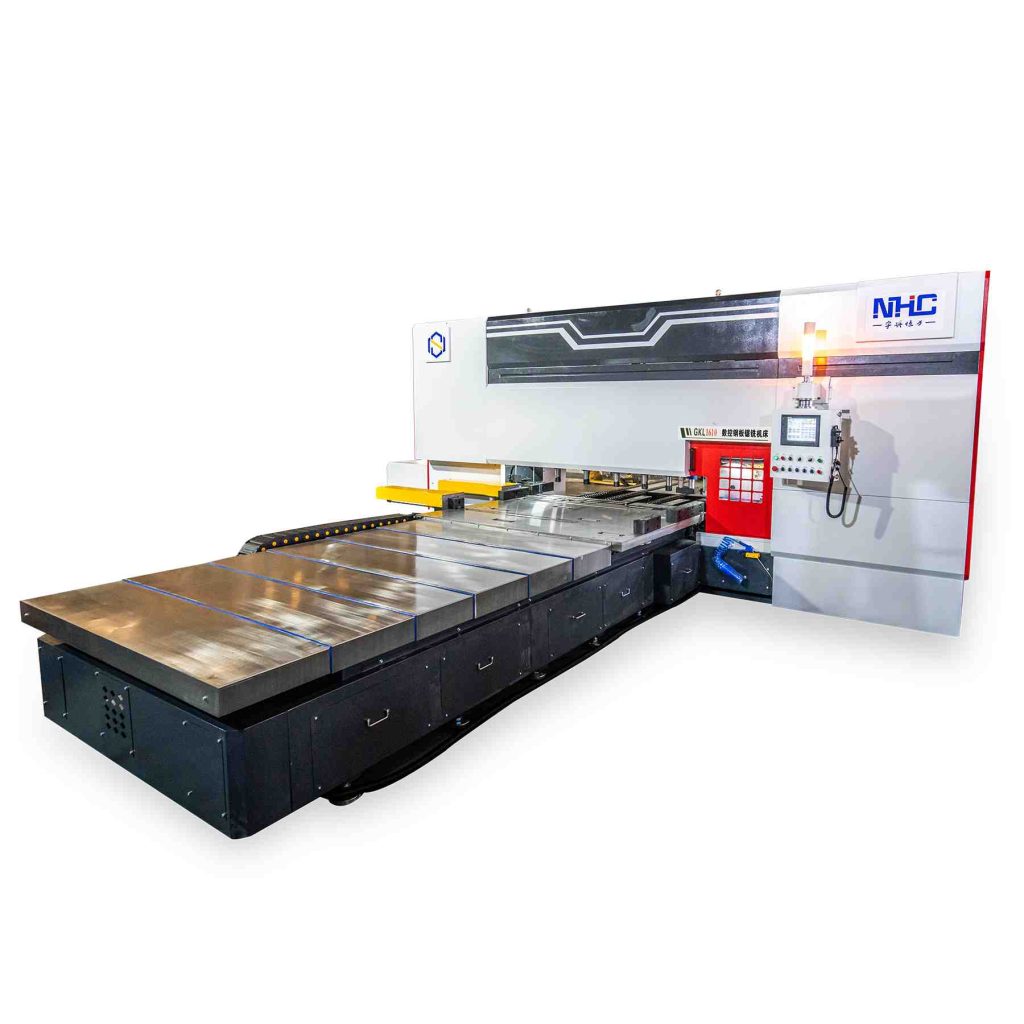

CNC machine Steel Plate Sawing and Milling Machine for GKL1610
Suitable for slitting bar plates into specified sizes
- High-Rigidity Structure: Key components made of high-quality castings for superior rigidity.
- Stable Operation: Welded composite guide rails ensure smooth, stable performance.
- Innovative Gearbox Design: Ensures zero backlash in spindle output, extending saw blades life.
- Precise Control: Servo motors and CNC systems ensure accurate feeding and cutting.
- Secure Clamping: Top pressing and side hugging methods provide reliable, secure clamping.
GKL1610 Machine Tool Parameter Table
| Blade size(MM) | Sawing range(MM) | Power | Roughness | Perpendicularity(MM) | Parallelism(MM) | Tolerance(MM | Work speed(MM) | Cooling method | Once feed (MM) recyclable | Machine dimension(MM) |
| ø425 | Width：500-1800mm thickness：20-100mm | 15kw | ≤ Ra6.3 | ≤ 0.3mm/100mm | ≤0.3mm/1600mm | ±0.3mm | 100~500mm/min continuously variable speed | Oil mist spray cooling | ≤2000 | 7200*6000*2600 |
Wide application field
In the field of metal processing, the traditional cutting and rough milling are replaced by an efficient and accurate "saw milling" method.
Multi-variety processing
Non-ferrous metals: copper, aluminum and its alloys; Ferrous metal: carbon steel, die steel, stainless steel, alloy structural steel, spring steel, wear-resistant steel, etc.
Customized
According to customer needs, can be tailored.
