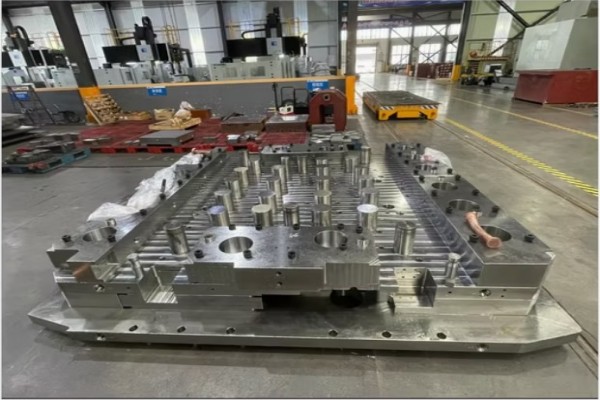

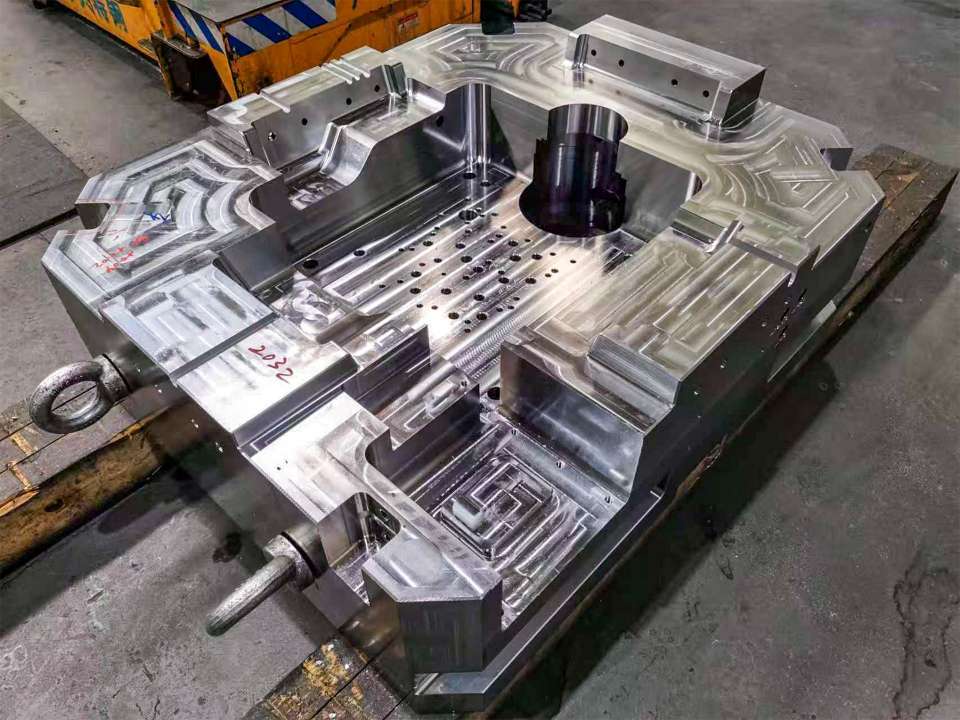

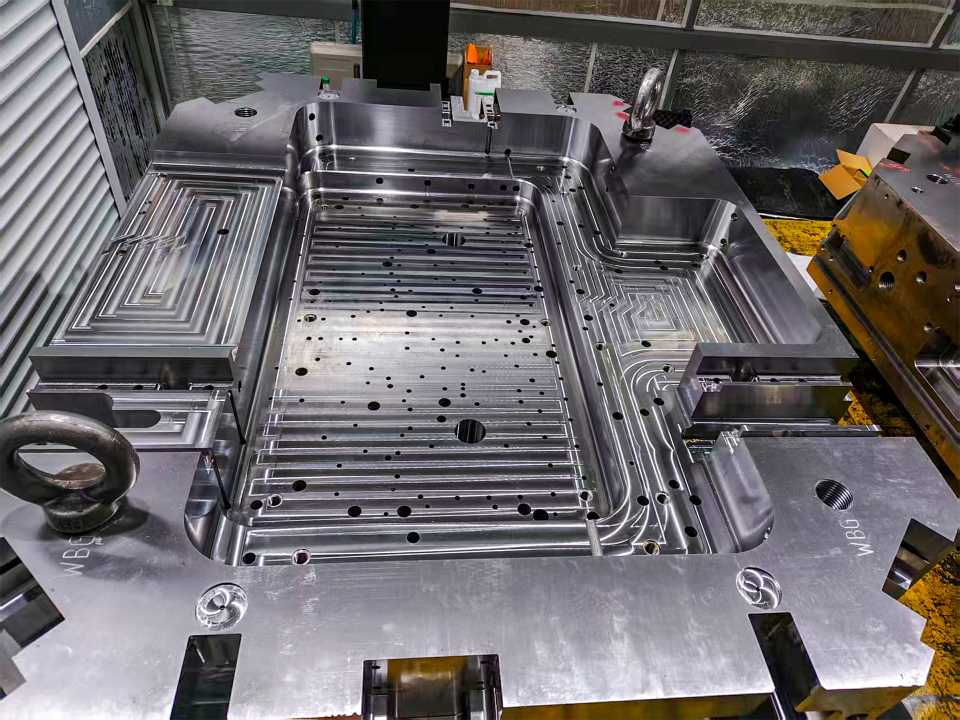

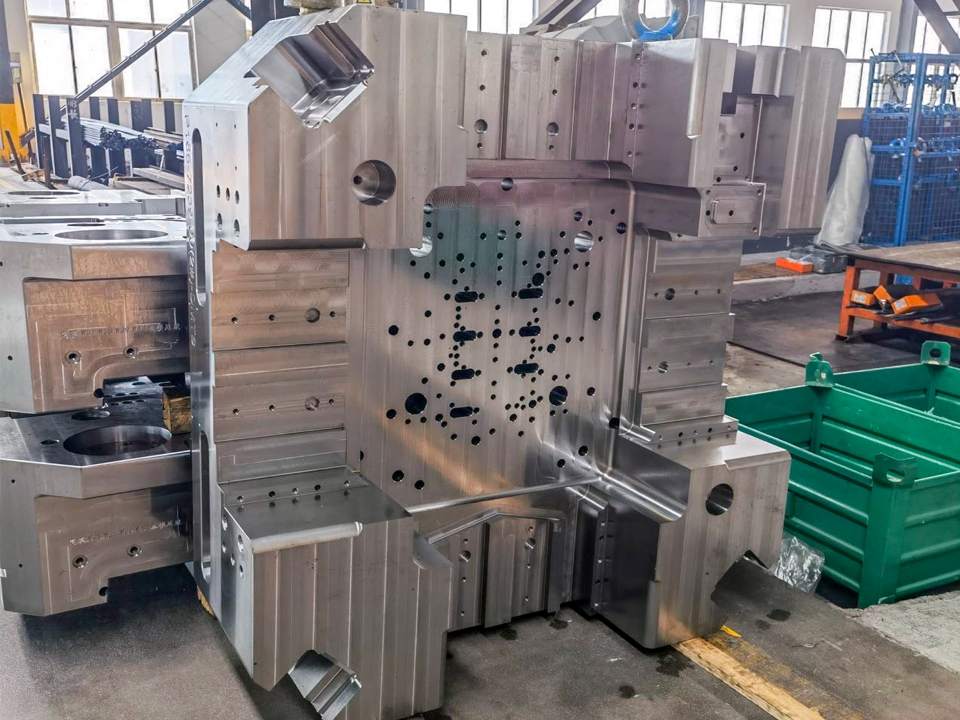

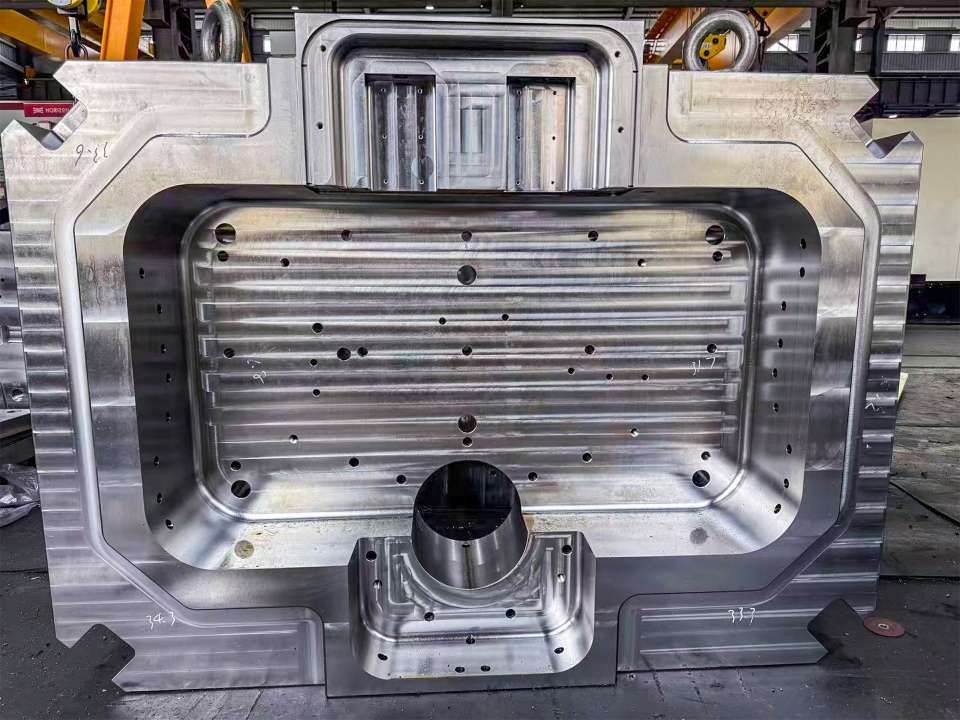

Die Casting Die
Die casting die withstands cyclic high-temperature impact and molten metal scouring, ensuring stable quality for automotive brackets, transmission, 5G base station and motor housing production.
- Standard: Custom design per customer part drawing. Conforms to NADCA or customer specifications
- Technique: EAF+LF+VD or ESR steel, forged with multi-directional ratio ≥4. CNC machined from 3D model, EDM for intricate details. Insert design for high-stress areas
- Shape: Complex geometry matching part contour. Inserts, slides, cores, ejector pins integrated. Max envelope per customer machine capacity
- Heat treatment: Cavity inserts vacuum heat treated to 44–48 HRC. Post-weld stress relief mandatory. Nitriding or surface coating applied after final machining
- Surface Treatment: PVD coating (e.g., CrN, AlCrN) for solder resistance. Nitriding for surface hardness >1000 HV. Polished surface Ra ≤0.2 μm for non-critical areas
- Tolerance: Cavity dimensions: ±0.02 mm per 100 mm. Parting line flatness 0.02 mm/1000 mm. Slide fit clearance ≤0.02 mm
- MOQ: 1 set (complete die). Free trial and debugging support available
We supply Die Casting Die in various custom sizes
Core Quality Inspection
Inspection Item | Standard / Method | Acceptance Criteria / Typical Value | Description |
Material Certification & Ultrasonic Testing (UT) | EN 10204 Type 3.1 + ASTM A578 / EN 10160 | Certifies H13 / 1.2344 / 1.2367; No discontinuities ≥ 1.5 mm in cavity steel | Traceable mill certs ensure correct steel grade; UT scan guarantees the cavity steel is free from internal defects that lead to premature heat checking and cracking. |
Vacuum Heat Treatment Verification | NADCA #207 / ASTM E18 / ISO 6508 | 44–46 HRC for H13; Microstructure: fully tempered martensite, grain size ASTM 7 or finer | Verified quench & triple-temper process guarantees optimal hot strength, toughness, and resistance to heat checking under extreme thermal cycling. |
Surface Nitriding & Coating Integrity | ISO 4516 / Calotest / Microhardness | Diffussion zone depth: 0.10–0.15 mm; Surface hardness ≥1000 HV; No white layer or continuous compound layer | Controlled nitriding or PVD coating (CrN, AlCrN) verified for adhesion and depth, preventing washout and soldering from molten aluminum injection. |
Cavity Dimensional Inspection | CMM / 3D Scanner | ±0.02 mm per 100 mm cavity dimension; Parting line flatness 0.02 mm/1000 mm | Full cavity and insert geometry verified against 3D model to ensure as-cast dimensions are within tolerance, preventing flash and mismatch. |
Cooling Line Hydrostatic Test & Flow Check | Hydrostatic 20–30 bar / Flow meter | 20 bar for 30 min, zero pressure drop; Flow rate per design simulation | Leak-proof and balanced water circuits confirmed; ensures consistent die temperature control to avoid hot spots, distortion, and soldering. |
Note: In addition to the above core inspections, NingShing performs comprehensive quality checks including insert fit and interchangeability verification, sliding core function testing, residual stress analysis (hole-drilling method), visual and dimensional inspection of all ejector pin holes, and full die try-out report analysis. Every die is delivered with complete heat treatment records, material certificates, and a final inspection report, ensuring total traceability and immediate production readiness.
Main characteristics of Die Casting Die
- Excellent thermal fatigue resistance – resists heat checking under cyclic high-temperature impact
- High wear & erosion resistance – withstands high-speed molten metal scouring
- Precise dimensional accuracy – ensures tight tolerance for complex cast parts
- Good thermal conductivity – enables uniform heat dissipation for stable quality
Die Casting Die applications

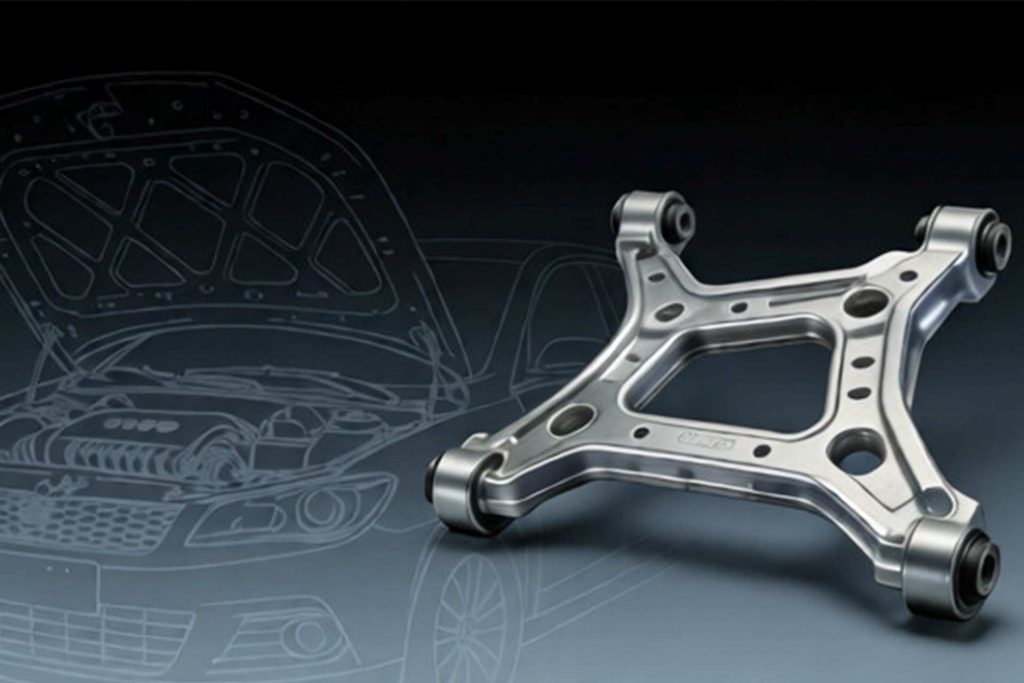

Automotive Engine Bracket Die Casting Die
High-strength H13 tool steel and optimized cooling ensure the die withstands high-speed aluminum filling and thermal shock, delivering crack-resistant, dimensionally stable brackets for engine mounts.

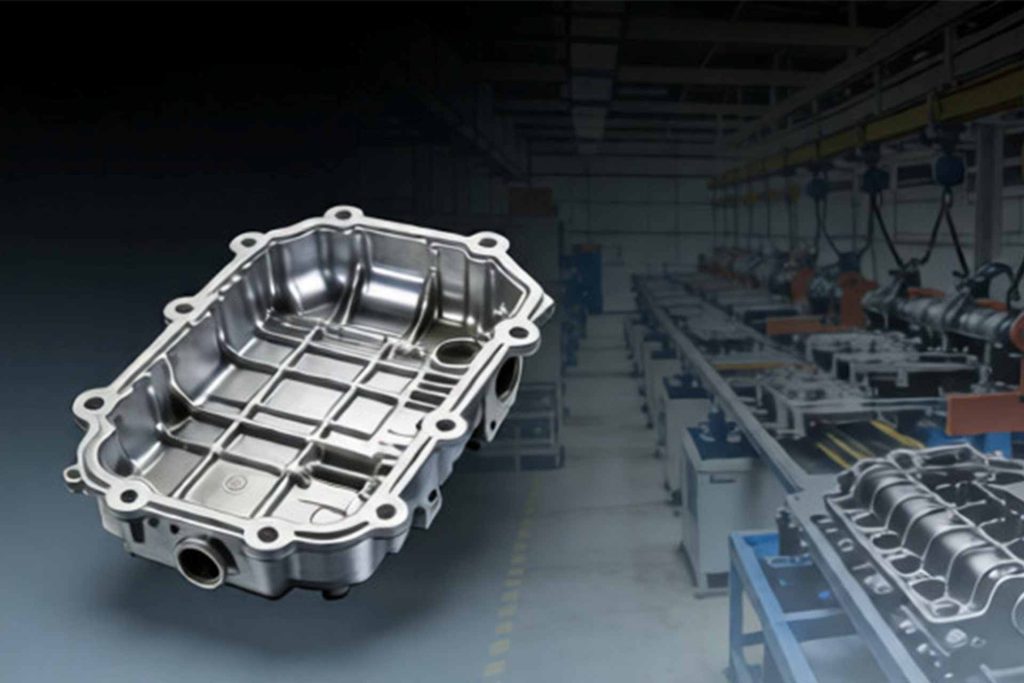

Transmission Housing Die Casting Die
Precision cavity machining and advanced PVD coating minimize soldering and washout, enabling high-volume production of complex, leak-tight transmission housings with tight tolerances.

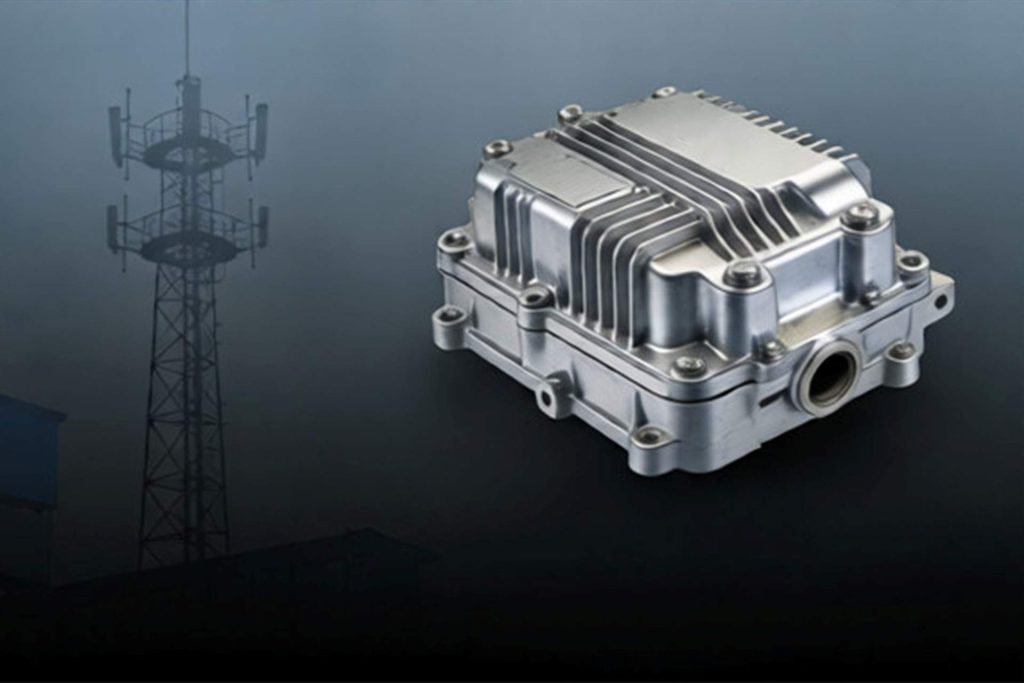

5G Base Station Housing Die Casting Die
Optimized gating and thermal management maintain uniform fill and rapid solidification for thin-wall, lightweight housings, meeting strict EMI shielding and dimensional requirements.

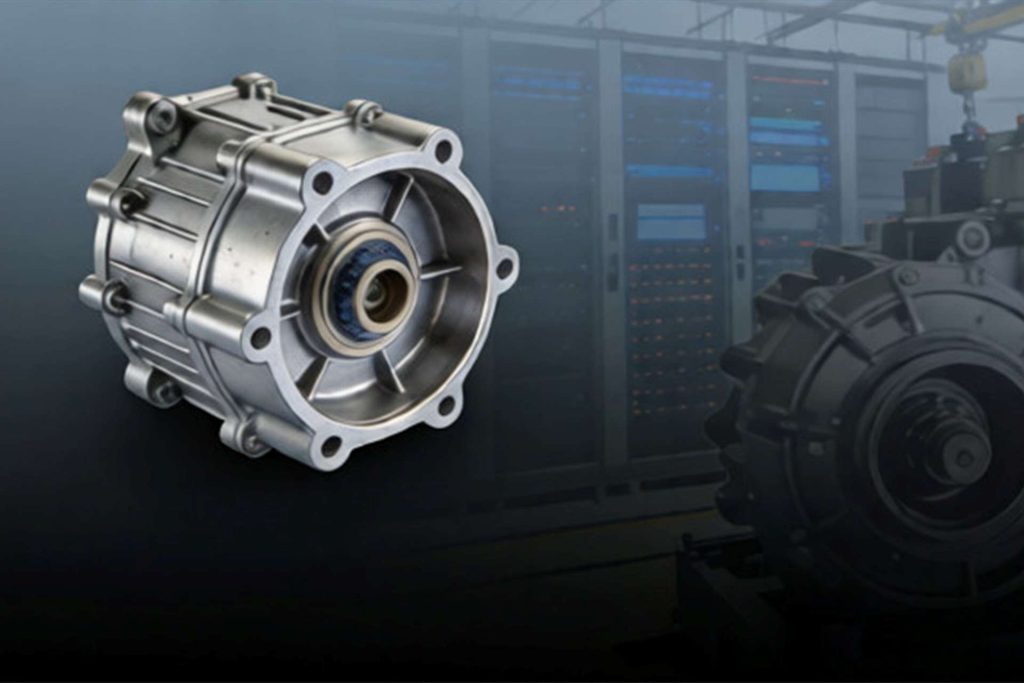

Motor Housing Die Casting Die
Deep cavity rigidity and conformal cooling channels ensure consistent internal geometry and surface finish, producing high-strength motor housings for EV and industrial drives with extended die life.
Our Production Technology For Die Casting Die
Parameter | Specification |
Material options | Premium ESR-grade hot work steels: USN (1.2343ESR), USD (1.2344ESR), HP1, CR7V-L, TQ1 |
Heat treatment | High-pressure vacuum quenching + 2–3 tempering cycles; solution treatment + aging for specialized grades |
Surface treatment | Nitriding, NSBP surface treatment, PVD coating (CrN, TiAlN), oxidation |
CAD/CAM capability | 3D programming using CAD, UG, Pro/E, Catia for complex cavity machining |
EDM capability | CNC wire EDM and sinker EDM for precision cavity details |
Tolerance | ±0.02 mm max |
Distinctive Characteristics vs. Mould Base
- Direct molten metal contact – Requires superior hot hardness and erosion resistance
- Complex cavity geometry – Demands 5-axis machining and EDM capabilities
- Tighter surface finish requirements – Critical for part release and surface quality
- More demanding heat treatment – Requires precise control to achieve 44–52 HRC while maintaining toughness
mechanical properties & heat treatment of Die Casting Die
| Heat temperature | Start forging temperature | Finish forging temperature | Cooling method |
| 1120–1150 °C | 1050–1100 °C | 900–850 °C | Pit or sand cooling |
Annealing
- 750 to 800°C (1382 to 1472°F)
- Slow controlled cooling in furnace at 10–20°C/h down to approx. 600°C, then air cool
- Hardness after annealing: max. 235 HB
Hardening
-
1000 to 1080°C (1832 to 1976°F) – select according to required balance:
1020–1050°C for maximum toughness (preferred for moulds)
1050–1080°C for maximum hot hardness (reduced toughness) - Oil, salt bath (500–550°C), or high-pressure gas quench (vacuum)
- Holding time: 15–30 minutes after temperature equalisation
- Hardness after quenching: 56–58 HRC
Stress relieving
- 600 to 650°C (1112 to 1202°F)
- Hold 1–2 hours in neutral atmosphere after thorough heating
- Essential for complex shapes to avoid distortion during hardening
Tempering
- Temper immediately after quenching (or after cryogenic treatment) to hand-warm temperature
- Holding time: 1 hour per 20 mm thickness, minimum 2 hours; air cool
- Minimum 2 tempers; 3 tempers strongly recommended for critical moulds
- 1st temper: 530–600°C (usually 580–600°C) to achieve secondary hardening
- 2nd temper: same range, adjust to target hardness
- 3rd temper: 30–50°C below the highest tempering temperature for stress relief
- Final hardness: 44–48 HRC (optimal balance of thermal fatigue and wear resistance); up to 52 HRC for specific applications
Deep Cryogenic Treatment (Optional but Recommended)
- Cool to -70°C to -80°C immediately after quenching, hold 2–4 hours
- Warm to room temperature naturally, then proceed to tempering
- Reduces retained austenite (<5%), improves dimensional stability and hardness
