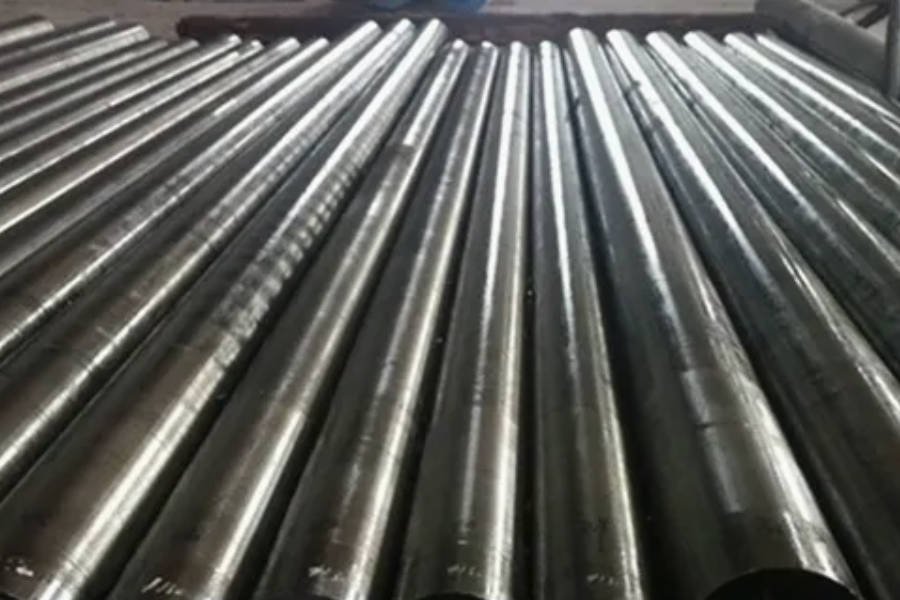

DIN 1.2362 Cold Work Tool Steel manufacturer

1.2362 Cold Work Tool Steel offers excellent wear resistance, toughness, and compressive strength. With good hardenability and dimensional stability, it is ideal for blanking dies, punches, and cold-forming tools.

Standard: DIN 1.2362 (X63CrMoV5-1)
Technique: EAF + LF + VD or ESR, forged, multi-directional forging ratio ≥4, stress-relief annealed

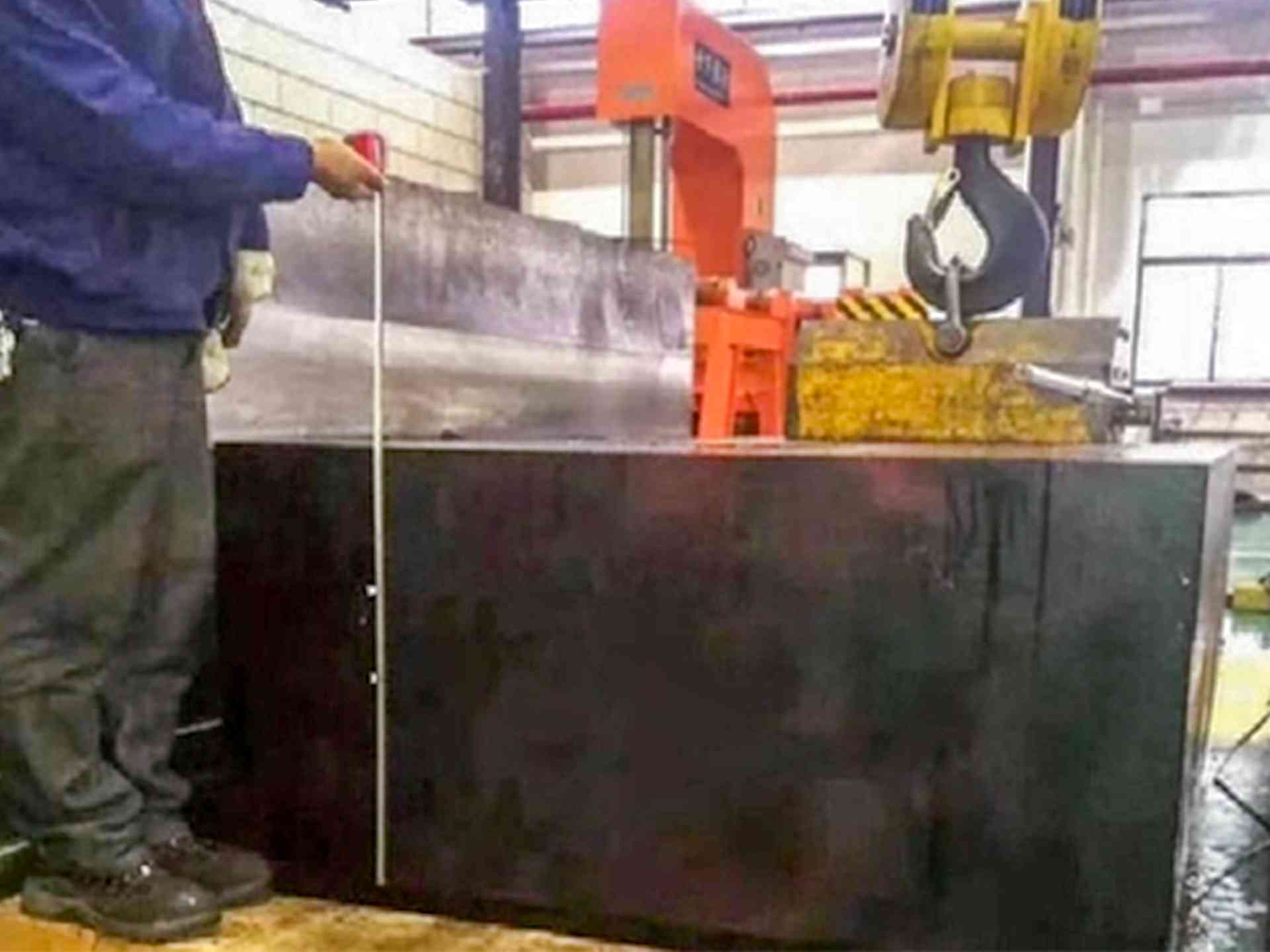

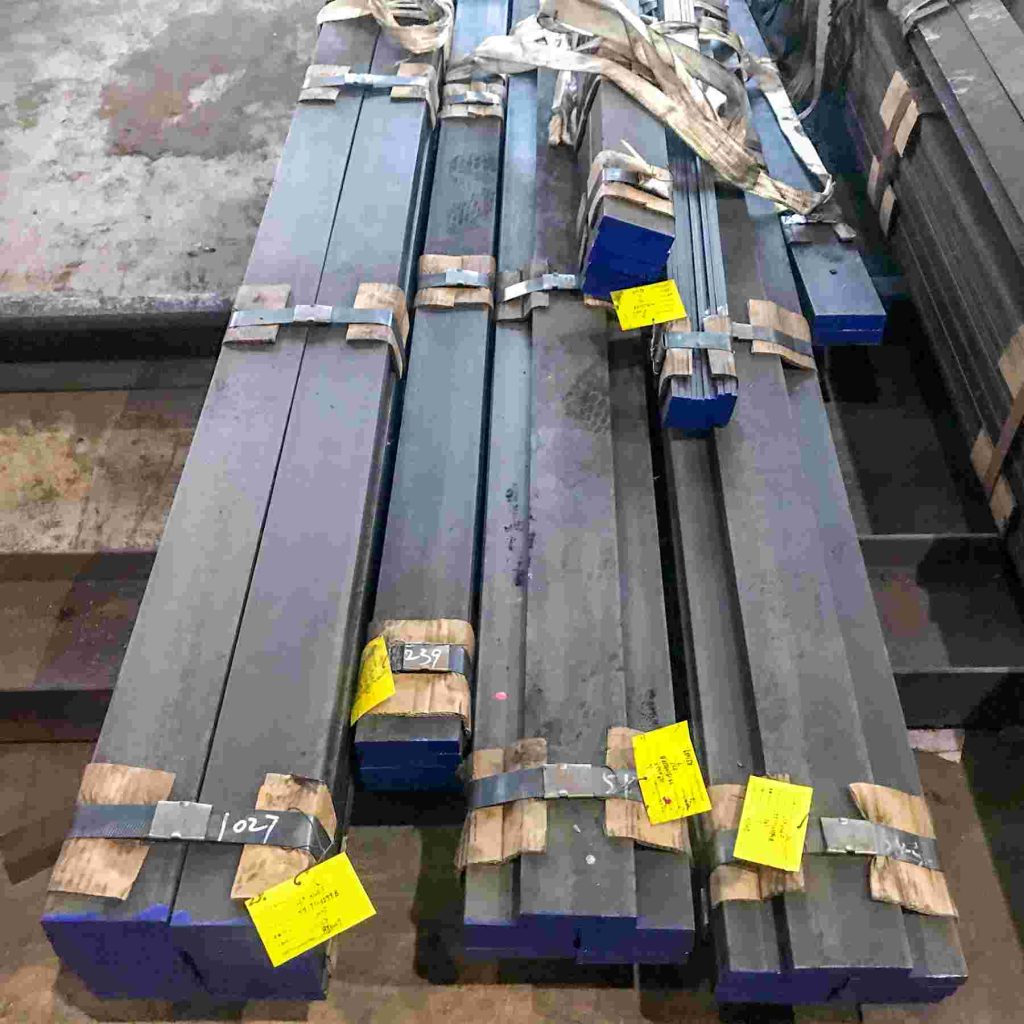

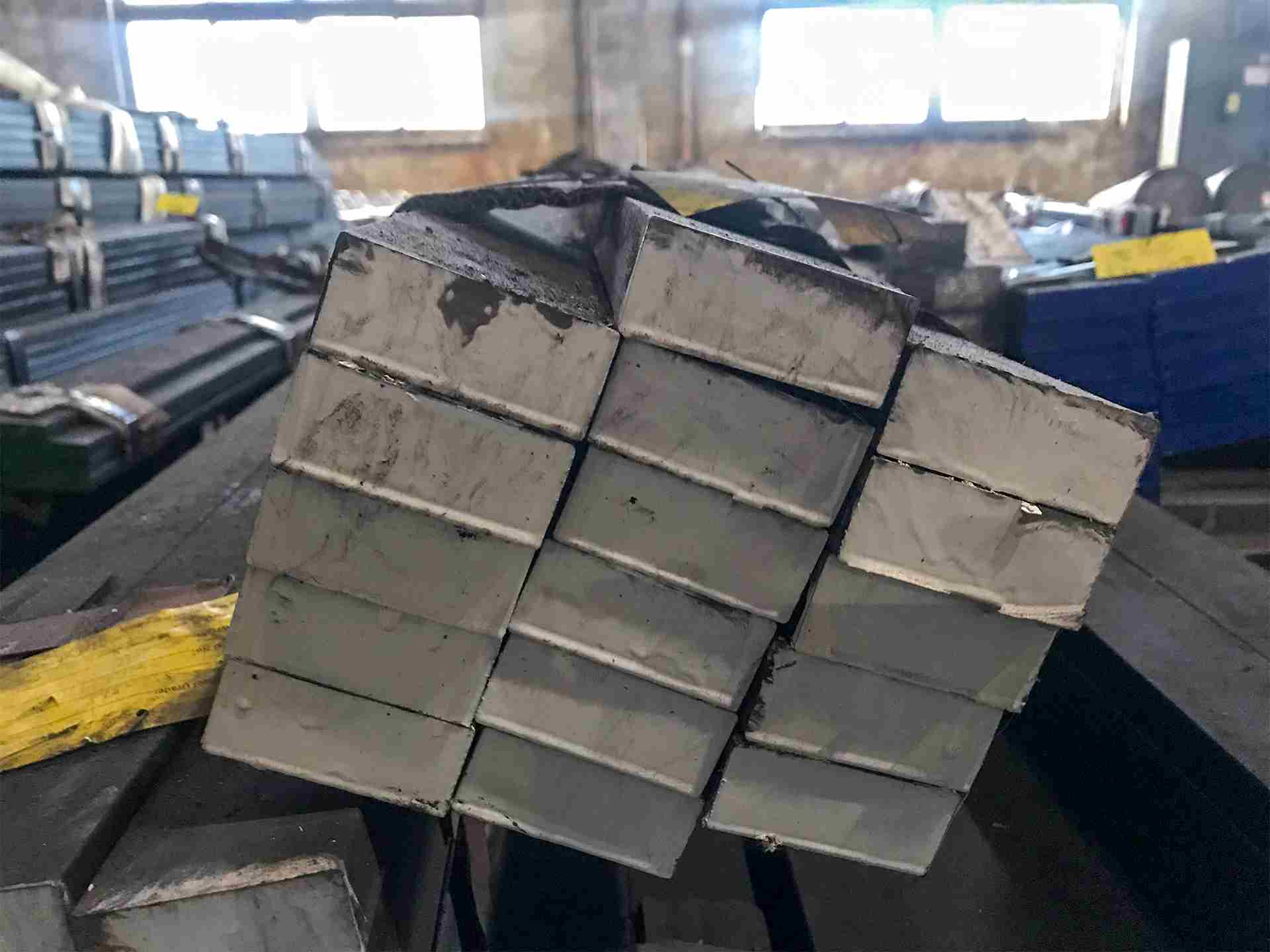

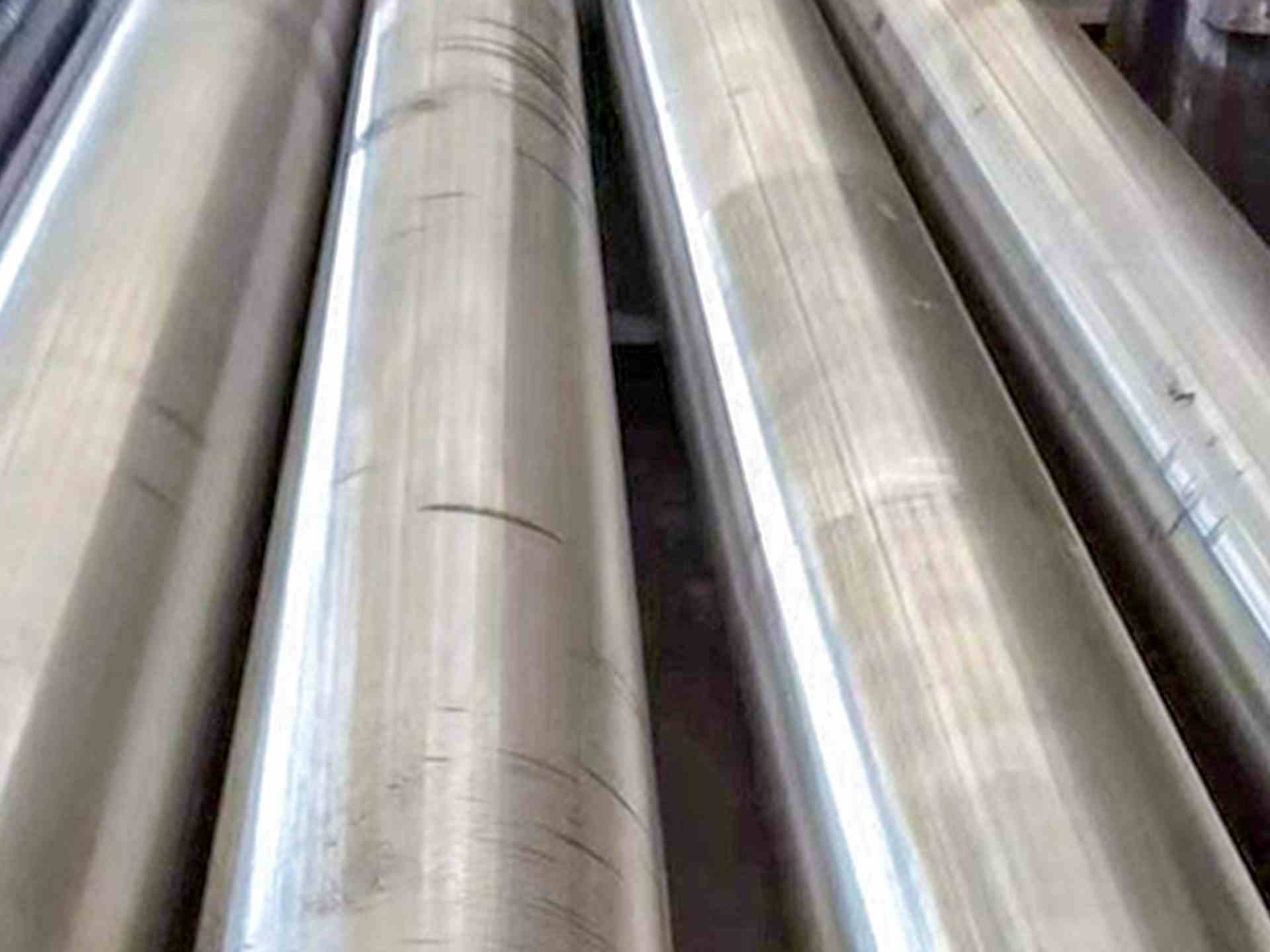

Shape:Round, Flat, Plates, Blocks
Heat treatment: Supplied in annealed condition, hardness ≤229 HBW; pre-hardened to 48–52 HRC (quenched and tempered) available on request
Surface Treatment: Black (hot-rolled / forged surface), turned, milled / ground, sawn ends
Tolerance: flat bars & plates thickness: +0.5/-0.0 mm (turned); forged blocks: ±0.2 mm
MOQ: 1 Ton

We supply DIN 1.2362 in various custom sizes

Chemical Composition (%)

Grade

P (≤)

S (≤)

(Other Elements, ≤)

1.2362

(X63CrMoV5-1)

0.60–0.65

1.00–1.20

0.30–0.50

0.030

5.00–5.50

1.00–1.30

0.25–0.35

Ni 0.30, Cu 0.25

Main characteristics of 1.2362 tool steel

1.2362 tool steel applications

1.2362 steel for Hot Shear Blade

High hot hardness and wear resistance ensure clean, precise cuts and extended blade life in hot shearing of bars and profiles.

1.2362 steel for Hot Stamping Die

Superior toughness and thermal fatigue resistance withstand rapid heating and cooling cycles in hot stamping of high-strength steel sheets.

1.2362 steel for hot forging die

Excellent heat-checking resistance and temper stability deliver reliable performance in hot forging of medium-sized components under repeated thermal and mechanical loads.

Our Production Technology For 1.2362 (X63CrMoV5-1) Cold Work Tool Steel

Ultrasonic testing (UT) 100% as per SEP 1921, ASTM A388, or EN 10228-3 (upon request)
Micro Cleanliness as per ASTM E45 or DIN 50602
Spheroidized microstructure as per relevant tool steel standards
Macrostructure, microstructure, grain size, and mechanical properties shall meet the standards specified in GB/T 1299 for Tool and Die Steels
Delivery condition: Soft annealed, hardness max. 225–240 HB

mechanical properties & heat treatment of 1.2362 steel

Heat temperature	Start forging temperature	Finish forging temperature	Cooling method
1100 – 1150 °C	1050 – 1100 °C	≥ 850 °C	Pit, sand, or furnace cooling

Annealing

Heat slowly and uniformly to 800 – 850°C (1472 – 1562°F).
Alternative range per SIJ: 800 – 840°C
Hold at temperature for sufficient time (typically 2 – 5 hours, depending on section thickness)
Cool slowly in the furnace at a controlled rate of 10 – 20°C/h (50 – 68°F/h) down to approximately 600°C
Then air cool to room temperature
Hardness after annealing: max. 225 – 250 HB (approx. 22–23 HRC)
Annealing in a protective atmosphere is recommended to reduce decarburization and surface scaling

Hardening

1.2362 (X63CrMoV5-1) is a Cr-Mo-V alloyed cold working tool steel that is both oilhardening and airhardening. It features high wear resistance, high compressive strength, good toughness, and excellent dimensional stability during heat treatment. The steel can be hardened by oil quenching, warm bath quenching, or air quenching, offering flexibility for different tool geometries and size requirements. Temper immediately after quenching
Pre-heating (recommended for vacuum/air quenching): Pre-heat slowly to 600 – 750°C to avoid thermal shock before austenitizing
Austenitizing temperature: 980 – 1020°C (1796 – 1868°F).
Alternative lower range: 930 – 970°C for specific applications where lower distortion is required.
Smaller sections may be hardened from the higher end of the range
Holding time: After temperature equalization, hold for 15 – 30 minutes
Quenching media:
Oil (preferred for most sections) — quench immediately after holding
Air (only for small dimensions, ≤ small cross-sections)
Warm bath (450 – 500°C / 842 – 932°F) — for martempering complex shapes to minimize distortion
Vacuum / high-speed gas quenching is also suitable for distortioncritical applications
Hardness after quenching: 61 – 63 HRC (approx. 62 HRC typical).
For the 930–970°C lower austenitizing range, quenched hardness is approx. 60 – 63 HRC

Stress relieving

Perform after rough machining or heavy stock removal, especially for tools with complex shapes or unbalanced cross-sections, to reduce the risk of distortion during final heat treatment
Heat carefully to approx. 650°C (1202°F)
Hold at temperature for 1 – 2 hours (after thorough heating in neutral atmosphere)
Cool slowly in the furnace, or after holding, air cool
This operation is performed to reduce distortion during final hardening

Tempering

Temper immediately after the workpiece cools to handwarm temperature (approx. 50–70°C). Delayed tempering may cause cracking
Number of tempers: Minimum 2 times. Double tempering is mandatory for this grade to ensure complete transformation of retained austenite and property stability. After each tempering cycle, cool to room temperature before the next tempering
Holding time: Soak for at least 1 hour per 20mm of section thickness (minimum 2 hours per cycle) and air cool after each cycle
Tempering temperature selection based on required properties:
Low-temperature tempering (180 – 250°C): For maximum hardness (58 – 62 HRC) with excellent wear resistance.
High-temperature tempering (500 – 550°C): For enhanced toughness and thermal stability (approx. 55 – 61 HRC). Especially suitable when the steel serves as a substrate for PVD coatings or nitriding.
Avoid tempering in the 300 – 450°C range (except for specialized applications), where toughness may be reduced
