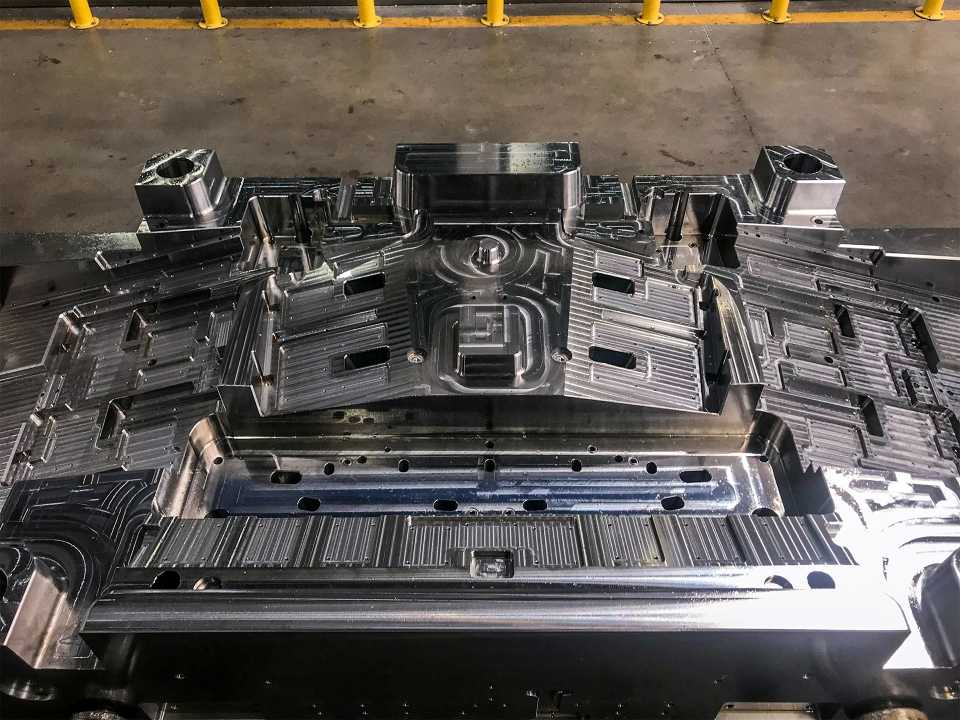

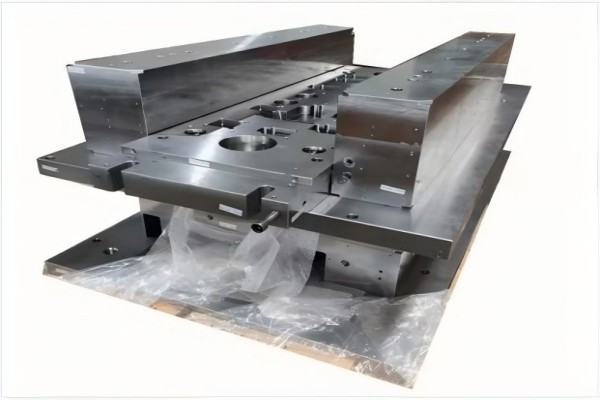

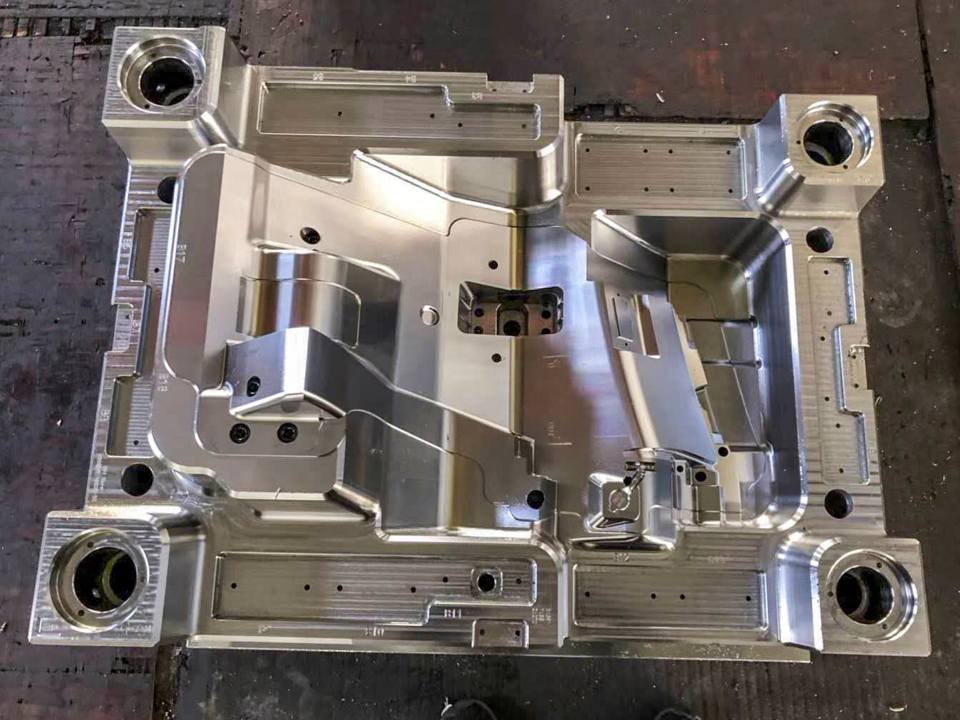

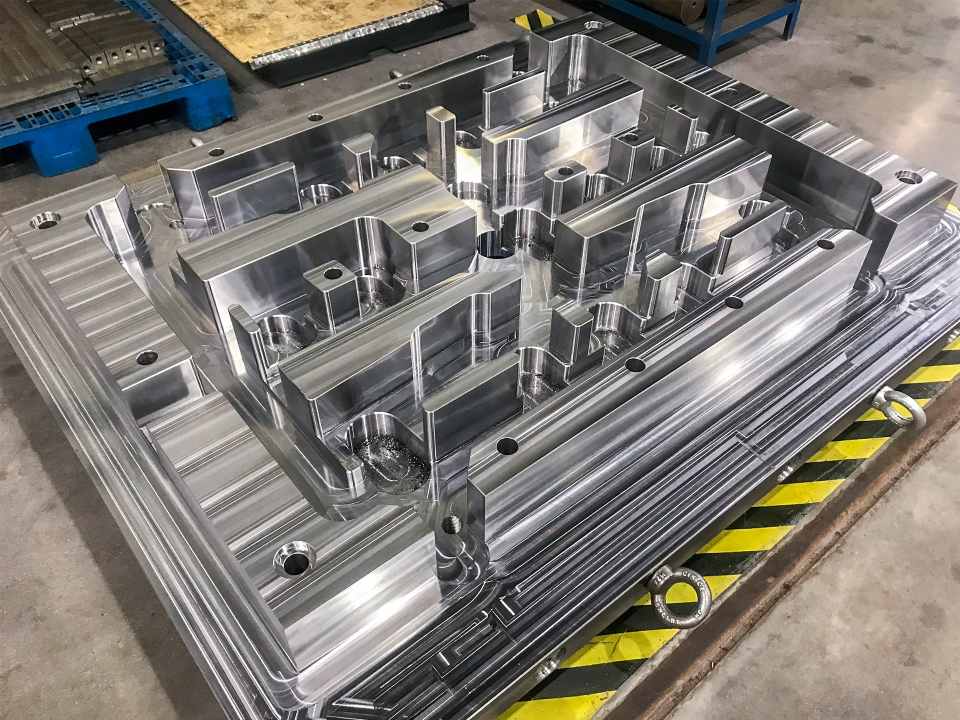

Injection Mould Base

Injection mould base features precise guiding system, high structural rigidity and excellent dimensional stability, widely applied to mould fabrication for automotive dashboards, household appliances, medical devices and consumer electronics.

Standard: Custom or standard mold base system
Technique: Fabricated from pre-hardened plates. Ready for direct cavity machining. All plates blanchard ground before hole drilling and pocket milling
Shape: Standard two-plate or three-plate mold bases. Custom oversized dimensions available
Heat treatment: Plates used in pre-hardened condition (28–34 HRC). No further heat treatment needed. Inserts can be hardened if required
Surface Treatment: Ground Ra ≤0.8 μm on critical faces. Electroless nickel plating optional for corrosion resistance. Standard anti-rust oil shipping
Tolerance: Flatness: 0.02 mm/1000 mm. Parallelism: 0.03 mm/1000 mm. Ejector plate stroke accuracy ±0.05 mm
MOQ: 1 set

We supply Injection Mould Base in various custom sizes

Core Quality Inspection

Inspection Item	Standard / Method	Acceptance Criteria / Typical Value	Description
Material Certification & Ultrasonic Testing (UT)	EN 10204 Type 3.1 + ASTM A578 / EN 10160	Pre-hardened steel per spec (e.g., 1.2311 28-34 HRC); No discontinuities ≥ 2 mm	Traceable mill certs and UT scan guarantee plate integrity, preventing sudden deformation or cracking under sustained clamping forces.
Flatness & Parallelism	DIN 876 / CMM	Flatness: 0.02 mm / 1000 mm; Parallelism: 0.03 mm / 1000 mm	Precision-ground parting faces ensure perfect mould alignment, eliminating flash and uneven wear on cavity and core components.
Pin & Bushing Concentricity	CMM / Dial Gauge	Concentricity ≤ 0.02 mm	Verified alignment of leader pins and bushings guarantees smooth mould open/close without binding, maintaining cycle speed and accuracy.
Cooling Line Hydrostatic Test	Hydrostatic Test	10–15 bar, 30 min; Zero pressure drop	Leak-free confirmation of all water circuits ensures stable mould temperature control, preventing hot spots, warpage, and extended cycle times.
Ejector System Function Check	Manual Assembly & Dial Gauge	Ejector plate parallelism 0.05 mm; Guide pillar sliding clearance H7/f7	Complete inspection of ejector plates, pins, and bushings ensures reliable, jam-free ejection without flash or part damage.

Note: In addition to the above core inspections, NingShing performs full multi-point hardness testing on all plates (ASTM E18), surface finish measurement on critical faces (ISO 4287, Ra ≤0.8 μm), CMM verification of all pocket, hole, and T-slot locations, and complete pre-assembly and sliding function tests. Every injection mould base is delivered with a comprehensive inspection report, ensuring immediate installation and production readiness.

Main characteristics of Injection Mould Base

Precise guiding system – ensures accurate mould closing alignment
High structural rigidity – withstands injection pressure with minimal deflection
Standardized design – offers high interchangeability
Modular design – supports flexible functional assembly

Injection Mould Base applications

Automotive Dashboard Mould Base

Deep cavity rigidity and precision-ground flatness withstand high injection pressures, ensuring stable parting line integrity and perfect panel alignment for large dashboard assemblies.

Household Appliance Mould Base

Balanced cooling layout and reliable ejection system enable fast cycle times and consistent quality in high-volume production of refrigerator, washing machine, and air conditioner panels.

Medical Device Mould Base

Corrosion-resistant plate options and ultra-smooth guide movement ensure cleanroom compatibility and precise, burr-free moulding for syringes, vials, and diagnostic components

Consumer Electronics Mould Base

Tight-tolerance pocket machining and high-precision leader pin alignment support ultra-thin wall moulding for smartphone frames, laptop covers, and wearable accessories.

Our Production Technology For Injection Mould Base

Parameter	Specification
Material options	1.2311/P20, 1.2738/718, 1.2738HH, 1.2083/420/4Cr13/S136, NAK80, 1.1730/C45/S50C/S355
Prehardened delivery	Most materials supplied prehardened (28–36 HRC) – no additional heat treatment required
Surface treatment	Nitriding (650–850 HV), hard chrome plating, PVD coating (as required)

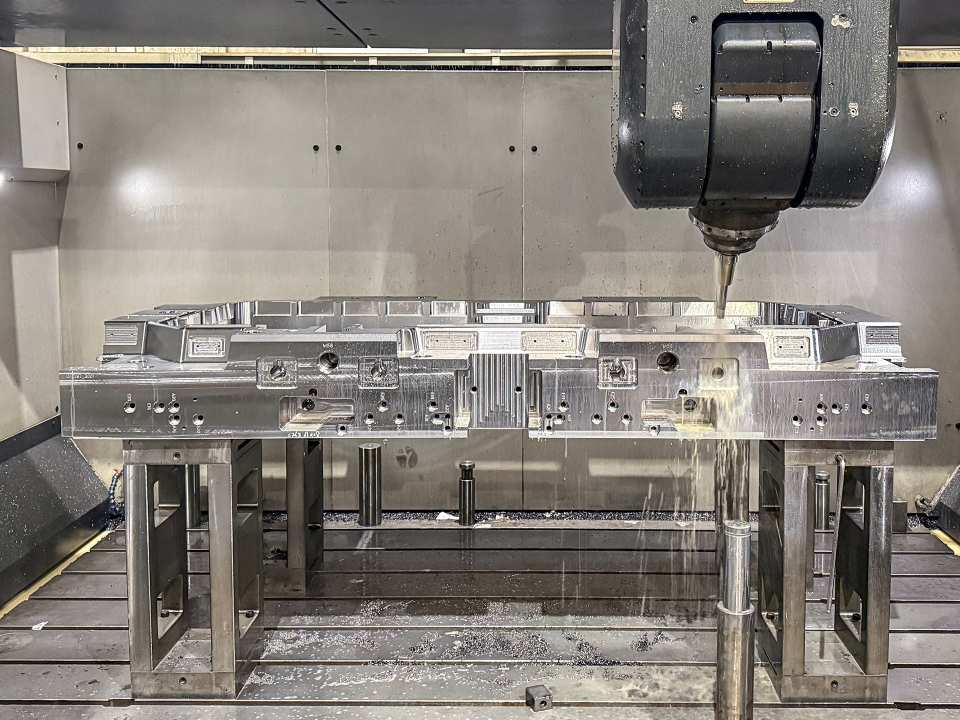

Machining equipment	5-axis & 3-axis CNC machining centers
Tolerance	±0.02 mm max
Standard interfaces	HASCO, DME, MISUMI, LKM compatible

mechanical properties & heat treatment of Injection Mould Base

Heat temperature	Start forging temperature	Finish forging temperature	Cooling method
1050–1100 °C	1000–1050 °C	850–900 °C	Pit or sand cooling (if forged)

Annealing

Hardening

Stress relieving

Tempering

Why Choose NSPM as Your Injection Mould Base Supplier

Source Direct

Direct mill cooperation ensures stable supply, competitive pricing, and consistent quality. Global resource integration and strong supply chain management guarantee reliable material sourcing and long-term availability.

Stock Ready

50,000+ tons inventory across 11 warehouses enables fast delivery. Flexible cutting, short lead times, and ready stock support urgent demands and improve customers’ production efficiency.

Expert Team

600+ professionals, including R&D specialists and technical engineers, provide application-driven support. Fast response and deep tooling knowledge ensure accurate solutions for diverse industrial needs.

Fully Inspected

Strict quality control system with full traceability, UT testing, and heat treatment records. Certified standards (ISO, CE) ensure every material meets high-performance and reliability requirements.

Full-Chain Machining

From steel supply to precision machining, heat treatment, and equipment manufacturing, NSPM offers integrated solutions that enhance accuracy, efficiency, and overall tooling performance.
